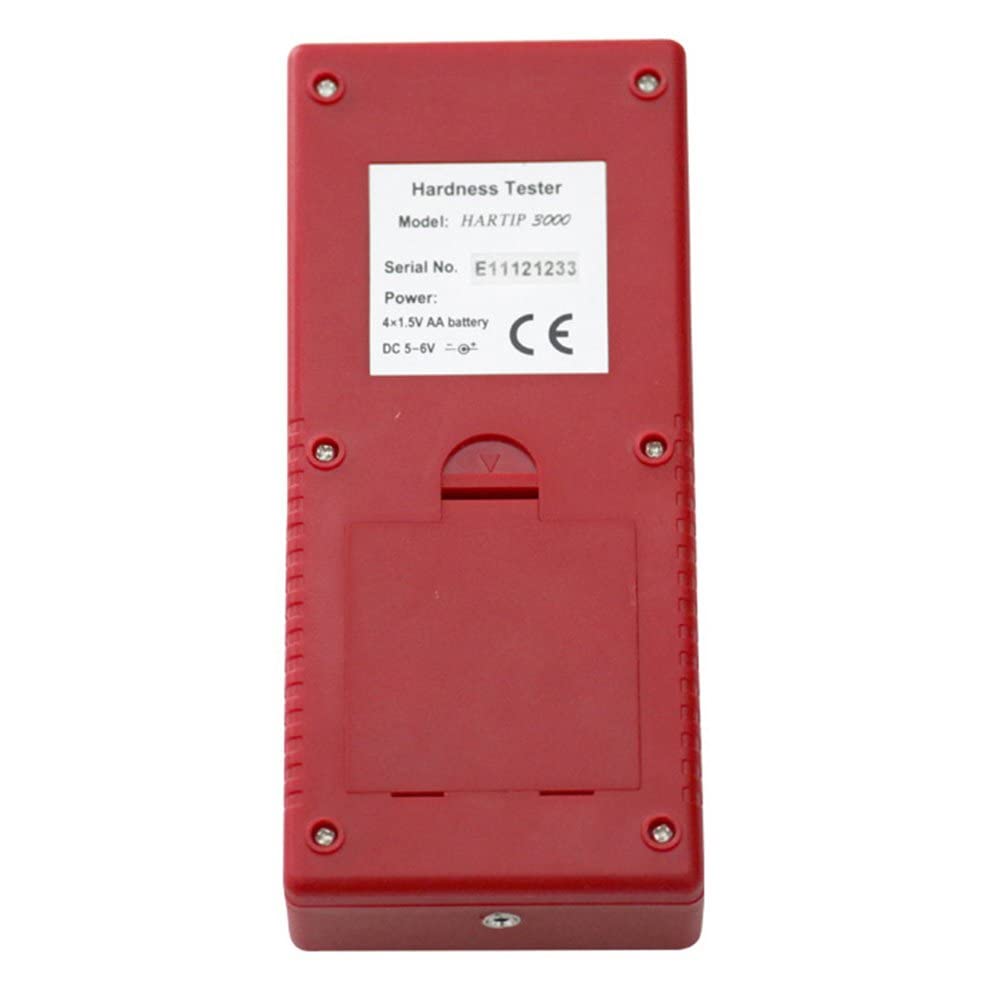

Handheld Hardness Tester Meter with Digital Display Hardness Measuring Scale HL/HRC/HRB/HB/HV/HS Range HL200 to 960 Backlight Display

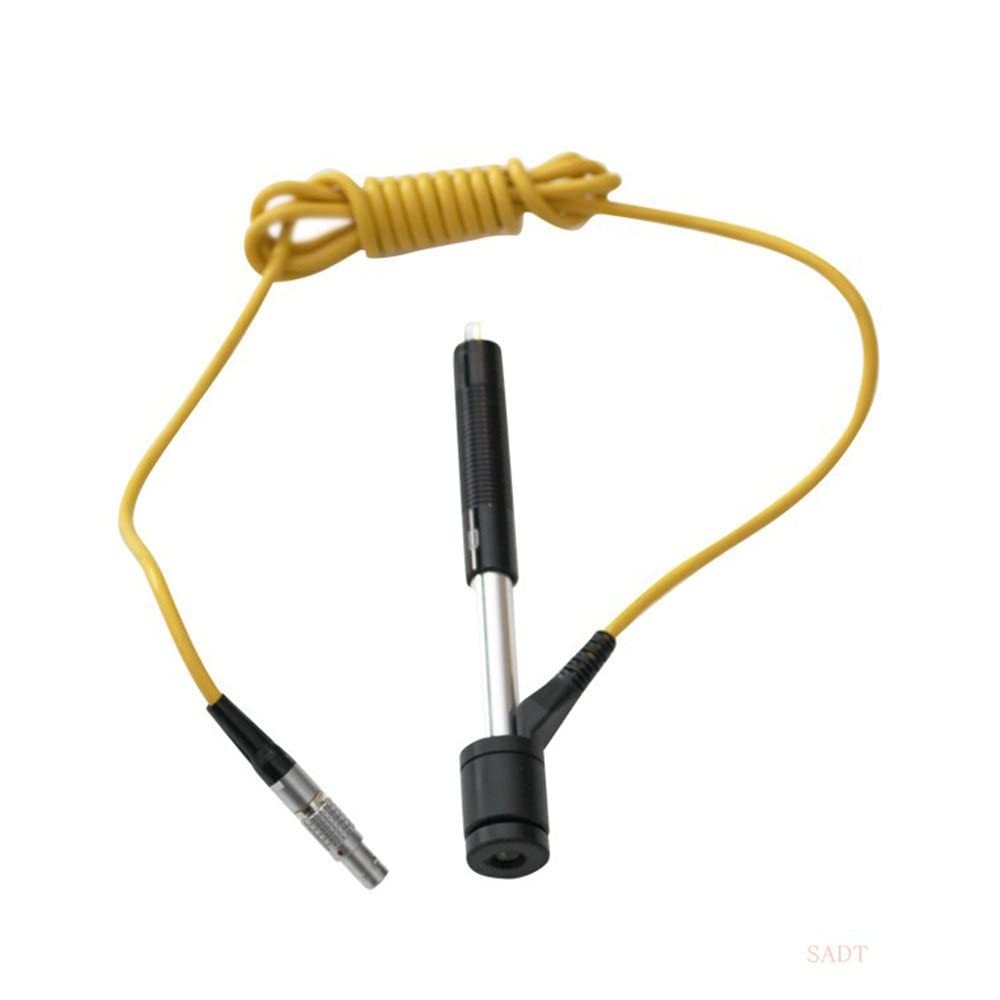

Shipping Policy : Battery Not included during the shipping It is suitable for testing the hardness of all metals especially on site for large structure/assembled components. Which is widely used in the industry of power, petro chemistry, air space, vehicle, machine and so on. Measuring Method The measuring principle of HARTIP series hardness testers is defined as "the quotient of the impact body's rebound and impact velocity, multiplied by 1000." An impact body with a Tungsten Carbide test tip is propelled by spring force against the test surface and then rebounds back. A permanent magnet is contained within the impact body. When it passes through the coil on impact device, it induces an electric voltage which is proportional to the velocity of the impact body. Technical Specifications *Model: HARTIP 3000 *Principle: Leeb hardness measurement *Accuracy: +/-0.5%@HL=800 *Display: Large graphic LCD with EL backlight *Hardness scale: HL/HRC/HRB/HB/HV/HS *Measuring range: HL200-960/HRC19-70/HRB13-109/HB20-655 / HV80-1027 / HS31.9-102.8 *Impact device: D (standard) *Materials: 9 common metal materials *Memory: 960 data in 8 blocks *Statistics function: Average / Max. / Min. / value *Low battery Indicator; Auto Power off *Interface: RS232 to PC *Power supply: 1.5v AA battery x 4（Battery not included in the package） *Working environment: -40~+80°C (main unit); -20~+120°C (impact device) *Dimension (mm): 195x84x38（mm） *Net weight (g): 550 *Standard configuration: HARTIP3000 host, type D impact test, type D standard test block, small support ring, small brush, operation manual, carry case *Optional Accessories: Impact body DC/D+15/C/G/E/DL, Data managing software, A set or special support rings, Leather case, Connection cable to PC or Printer

• ◆ HARTIP 3000 leeb hardness tester is an advanced hand-held digital metal hardness tester with characters of high accuracy, wide measuring range and easy operation.
• ◆ Principle: Leeb hardness measurement; Hardness scale: HL/HRC/HRB/HB/HV/HS; Accuracy: +/-0.5%@HL=800
• ◆ Comply to standard ASTM A956; Measuring range: HL200-960/ HRC19-70/ HRB13-109/ HB20-655 / HV80-1027 / HS31.9-102.8
• ◆ Large LCD display with backlight; Automatic mean, max., min. value display; Low battery Indicator; Auto Power off
• ◆ It is suitable for testing the hardness of all metals especially on site for large structure/assembled components. Which is widely used in the industry of power, petro chemistry, air space, vehicle, machine and so on.
