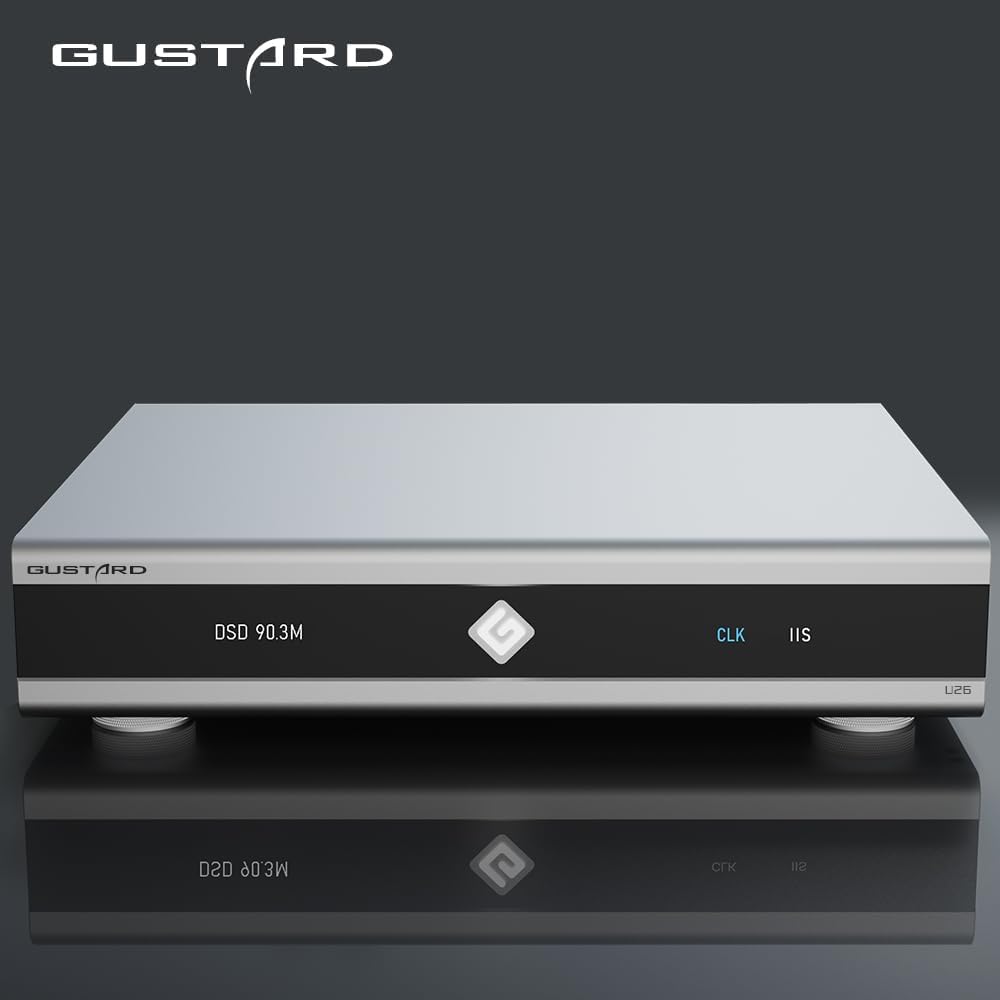

Fanmusic GUSTARD U26 USB Digital Interface DSD 2048 Digital shaping (Silver)

SPECIFICATIONS Digital Inputs USB Interface: USB Type-B (female), USB 2.0 compatible 10M BNC Input: Input impedance 50 Ω, input level 0 dBm to 20 dBm Digital Outputs COAX (Coaxial): Output impedance 75 Ω, output level 500 mV P-P @ 75 Ω load PCM: 24-bit, 44.1 kHz-384 kHz / DoP64-128 AES (XLR): Output impedance 110 Ω, output level 2.1 V P-P @ 110 Ω load PCM: 24-bit, 44.1 kHz-384 kHz / DOP64-128 OPTICAL (TOSLINK): PCM: 24-bit, 44.1 kHz-192 kHz / DoP64 llS over HDMl (not standard HDMl interface): LVDS output level PCM: 32-bit, 44.1 kHz-1536 kHz DSD: 2.82 MHz-90.3 MHz (DSD64-DSD2048) Other Parameters AC Power supply: AC 115V / 230V , 50/60 Hz Power Consumption: <15W Unit Dimensions: W 330 mm x H 65 mm x D 260 mm(excluding protrusions) Packaging Dimensions: W 420 mm x H 175 mm x D 360 mm Weight: 4.8KG (single machine) Weight: 6.3 kg (including packaging) WHAT IN BOX? U26 * 1 Power cable * 1 User manual * 1

• PCB Physical lsolation Design. Incorporates a 200M6ps full-isotation chip to eliminate interference from the source, resultingin purer and cleaner audio reproduction.
• CPLD-Digital signal shapingTechnology. Re-shapes the isolated llS signals to eliminate additive jitter introduced by the isolation chip.
• OCXO and K2 High-Performance PLL Clock System. Utilizes a high-precision Temperature-Controlled Crystal Oscillator (OCXO) as the core clock sourcecombined with K2 high-performance Phase-Locked Loop (PLL) technology. lt generates dual low-phase-noise clock signals (98.3040MHz & 90.3168MHz), providing precise synchronization for critical tasks like audio processing and data transfer. This effectively suppresses the impact of jitter on sound quality at the source.
• Multi-Stageindependent Power Supply Architecture: Utilizes a low-noise toroidal transformer with multiple output windings. lmplements independent rectification and filtering, followed by first-stage regulation via discrete circuitry, and second-stage regulation via ultra-low-noise LDOs. Provides dedicated LDO power supplies for the three core modules: USB interface, digital circuits and clock circuits, preventing power supply interference between different circuit sections.
• Custom Drivers and Tuning Potential. Equipped with Amanero's exclusive 32-bit U5B Audio driver, supporting: Independent buffer settings for flexibly adjusting data buffering based ondevice performance to balance latency and stability;Independent latency settings for precise control over signal processing timingto accommodate different playback software requirements; Fine-tuning of sound characteristics through driver parameter matching(such as clock phase and data alignment), enabling subtle optimization of audio details like resolutionand dynamic range to cater to the personalized tuning preferences of audiophiles.
• Robust And Aesthetic Design. The full aluminum alloy chassis provides both electromagnetic shielding and structural integrity. This compact unit integrates all the aforementioned high-end configurations, protecting precision circuitry from external interference while blending seamlessly intohigh-end audio setups with its minimalist aesthetic.
