Aluminum Radiator For 1988-1999 92 93 1994 Chevy C1500 C2500 C3500 K1500 K2500 K3500 GMC Suburban 5.0 5.7L V8 89 90 91 92 93 94 95 96 97 98 2 Row Radiators Shroud Fan

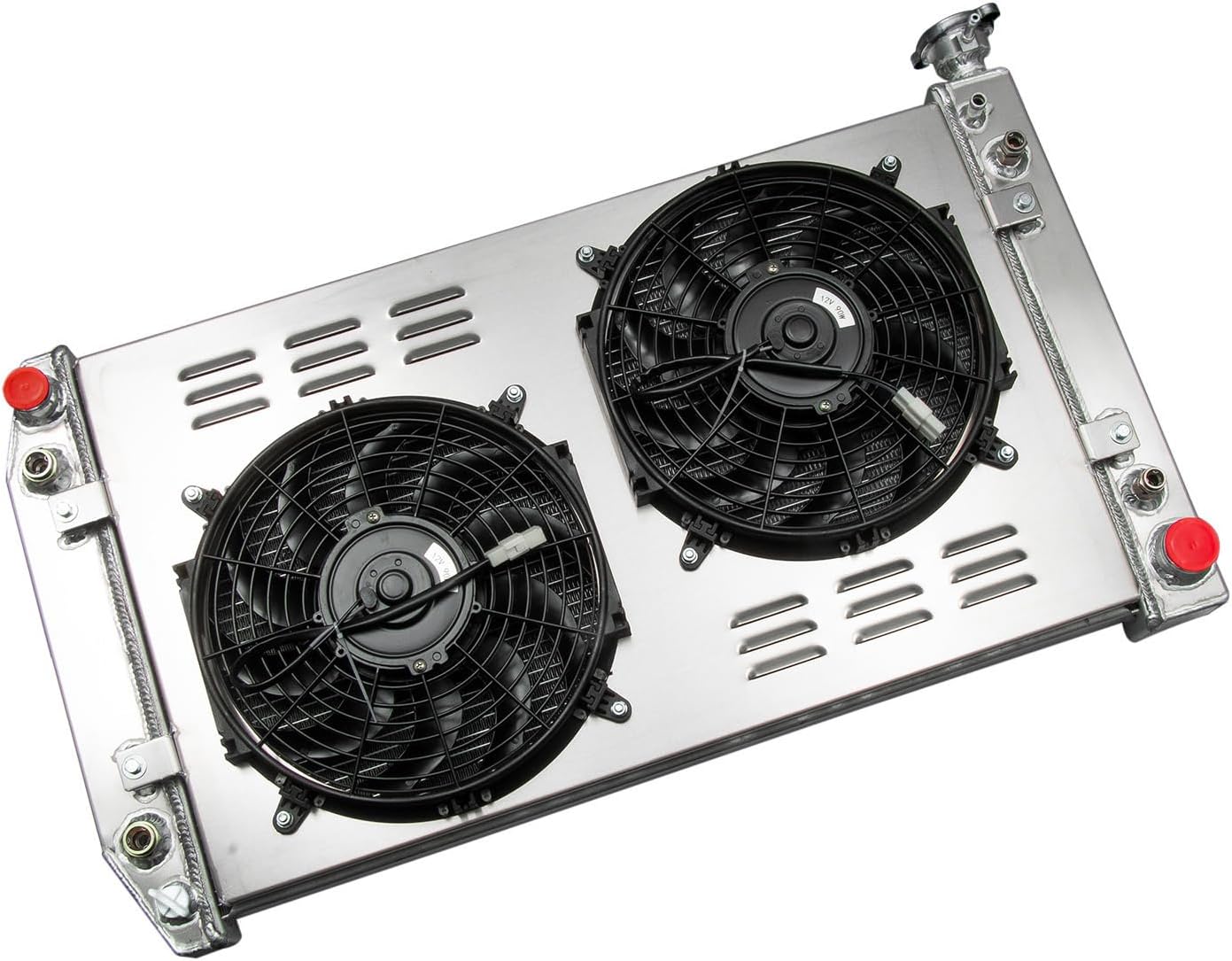

Fitment: For 1996-1997 Chevy P30 / GMC P3500 4.3L V6 For 1992-1995 Chevy/GMC Suburban 5.7L V8 For 1988-1995 Chevy/GMC C/K Pick Up 5.0 / 5.7L V8 For 1994-1995 Chevy/GMC C/K Pick Up 4.3L V6 For 1989-1991 Chevy R/V Series 5.7L V8 For 1994 Chevy Blazer - Full Size 5.7L V8 Pakage Include: 1 X 3-Row Aluminum Radiator (Includes Radiator Cap) 1 X Aluminum Shroud 2 X 12" Fans (Includes mounting kits) FAN SPEC: Maximum Fan CFM: 2300±200 Fan Diameter X Height X Thickness:12.05" X 12.05" X 2.5" Number of Blades: 10 blades (Plastic) Amp Draw: 12.70 amps Maximum Fan RPM: 2,250 rpm Radiator Details:Brand: Cubauto 2-Row of tubes Core Racing Design Material: Full Aluminum ,AA5052Aircraft Grade Aluminum Features: 100% Leak Tested,Crossflow Radiator, Durability Tested, No Drilling or Modifications Needed for Installation Placement on Vehicle: Engine Compartment, front Crafts : 100% TIG welded Fitment Type: Performance/Custom Mounting Style: Bolt-On Delivery: Local Delivery Manufacturer Part Number: 622 CU622 KKS622 SBR622 CC622 TYC622 DPI622; RAD622 AE622 EC622 SPTCU622 RA622 RK622 SC622 TYC622 1804, 2383; 52467208, 52467210, 52469431, 52469432, 52469466, 52491623, 622 Feature This aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This Aluminum Radiator is at least 40% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.

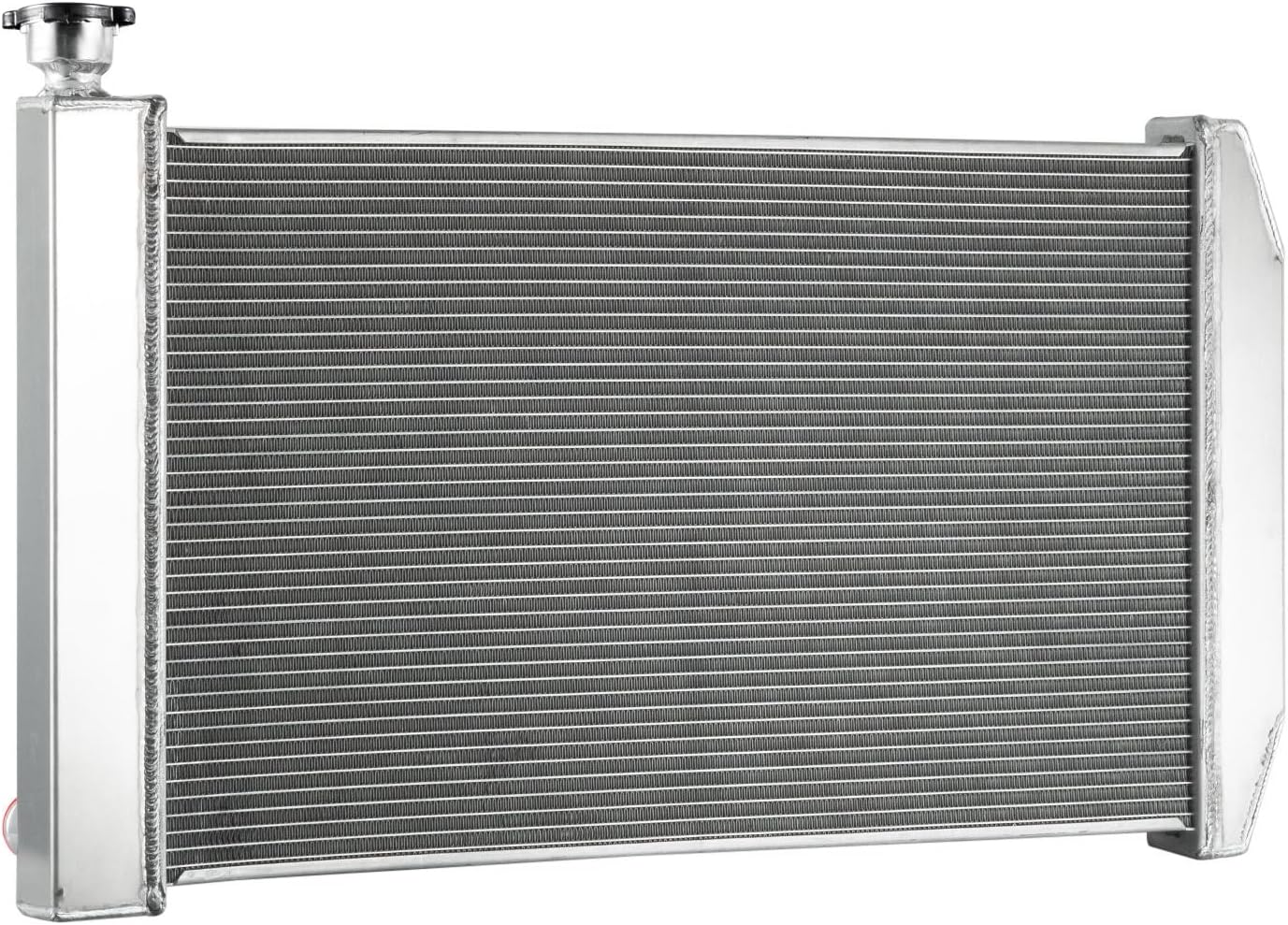

• Core Size : 28.27" H x 17.24" W ; Overall Size : 33.86" H x 20.47" W x 5.51" T ; Inlet/Outlet: 1.26"/1.57" ; Upper Hose Fitting: Driver ; Lower Hose Fitting: Passenger
• Transmisson Oil Cooler ：φ26*292*1/2-20UNF(Z) ; Engine Oil Cooler : φ32*292*M20*1.5(P) ; Includes CNC machined filler neck and cap,OEM Style Brass Petcock Drain
• Aircraft Aluminum craftsmanship radiator & exclusive tube design that dramatically increases cooling efficiency by up to 30%~45%, strong and durable, 100% welded by TIG, No Epoxy. 100% Leak Tested
• Meticulously built to superior OE standards for a precise fit, direct bolt-on replacement. No Drilling or Modifications Needed for Installation
• If you have any questions, please contact us, Cubauto will do our best to solve it for you and give you the best purchase experience
